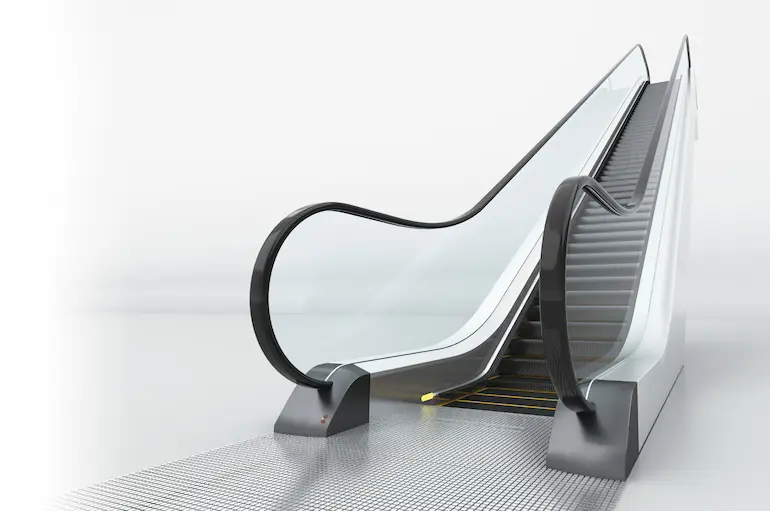

Maximum Hoisting Height: H ≤ 9.6 m
Step Width : 1000mm/800mm/600mm
Handrail Type : Slim
Service Environments : Indoor/Outdoor
Control Mode : VF low speed to high speed (Standard)
VF self-starting (optional)
Traction Machine : Worm gear operated traction machine/Integrated direct drive traction machine FJ/FYD
Escalator Scope of applications:
Basic Characterisitics | Light Height | According to the host power to be |
| Speed of escalator | ≤0.9 m/s | |
| Drive component power | 5.5KW to 18.5KW | |
| Angle of inclination | ≤35° | |
| Operation mode | Bypass frequency conversion | |
| Standards compliance | GB16899-2011 |
About Escalator control system,please refer to : Surapid Escalator Control System Instruction Manual
A: Direct-drive commercial escalators eliminate traditional chain drives entirely
A: All SURAPID floor slabs are engineered with heavy-duty structural cross-beams
A: SURAPID public transportation escalators undergo a brutal 20-million-cycle dynamic load test
Escalator Main specifications and technical parameters
| Escalator Input Power | Phase, voltage, frequency | 3phase；380V；50/60Hz |
| Three-phase unbalance rate | ≤2% | |
| Allows voltage fluctuation | -15%～+10% | |
| Allows the frequency to fluctuate | ±5% | |
| Three - phase five - wire system | Neutral, earth wire can not be mixed | |
| Escalator Drive Characteristics | Control method | Escalator - specific control |
| Starting torque | 100%/0.5HZ | |
| Speed control range | 1：100 | |
| Speed control accuracy | 1% | |
| Frequency control range | 0-60HZ |
| Escalator Logical IO Characteristics | Operating Voltage | DC24V |
| Frequency control range | 50/60HZ | |
| Port input voltage range | 18V~26V | |
| The maximum load voltage is output | 277 VAC, 125 VDC | |
| Outputs the maximum load current | 5 A | |
| Output maximum load power consumption | 1250VA, 150W |
Escalator Working conditions
| Environment | Ambient temperature | -10℃～+40℃ |
| Humidity | 95%RH（No condensation） | |
| Save the temperature | -20～+60℃ （Short-term temperature during shipment） | |
| Use of premises | Indoor and outdoor | |
| Altitude | ＜1000m（＞1000m Need to reduce the capacity to use） | |
| Installation environment | Indoor and outdoor |
Escalator Functions
| Function Item | Fuction descripition | Remarks |
| Motor overspeed protection switch | Prevents motor over-speed from danger (mechanical parts) | STANDARD |
| Motor fan cover protection switch | To prevent the motor fan cover is removed, resulting in the risk of accidents. | STANDARD |
| Motor thermal protection switch | To prevent the motor burned by overheating. | STANDARD |
| Handrail entrance switch detection | To prevent the human body such as human fingers or other foreign objects stuck into the escalator damage. | STANDARD |
| Comb plate switch detection | Prevent foreign body from getting into comb plate. | STANDARD |
| Step collapse detection | Detects whether a step has collapsed | STANDARD |
| Traction chain break switch protection | Detects whether the step chain is loose or broken. | STANDARD |
| Emergency stop switch function | When emergency stop is required, press this button to emergency stop. | STANDARD |
| Front panel switch detection | Check whether the front panel is open. | STANDARD |
| Automatic lubrication function | Automatic lubrication according to the set parameters | STANDARD |
| Brake switch detection | Check whether the brake is operating | STANDARD |
| Escalator speed detection | Detection of escalator speed, the escalator after the start of 2S no speed feedback alarm | STANDARD |
| Escalator speed abnormal protection | To prevent the escalator speed anomalies such as speeding, reversing the danger. | STANDARD |
| Step loss detection function | Detection of escalator step is missing, deformation, damage. | STANDARD |
| Handrail speed protection | Check whether the handrail belt speed is consistent with the escalator speed | STANDARD |
| Phase sequence detection | Detection of power supply, phase sequence, phase loss | STANDARD |
| Key signal monitoring | Monitoring the key switch to detect whether there is adhesion, whether both the uplink and downlink signals | STANDARD |
| Contactor adhesion protection | Check whether the main contactor adhesion | STANDARD |
| Ring prompt function | Normal or inspection start the escalator, there is a ring prompt | STANDARD |
Automatic start and high and low speed operation | The escalator enters the zero-speed standby mode without a load and enters the high-speed operation modewhen there is a load | STANDARD |
| Reverse direction into the reminder | When the passenger enters the escalator from the opposite direction, the escalator runs at high speed for 15 seconds to remind the passengers not to enter the wrong direction | STANDARD |
| Inspection operation function | Jog operation when used for repair and maintenance | STANDARD |
| Self-learning function | The control system learns the step speed, handrail speed, master drive wheel speed | STANDARD |
| Braking distance detection | Detects the current braking distance of the escalator | STANDARD |
| Inverter fault detection | Detection of inverter overheating, overload, overvoltage and other failures | STANDARD |
| Communication fault detection | Inverter Communication Fault and Safety Board Communication Fault Detection | STANDARD |
| Program recognitio | The program recognizes the control cabinet model | STANDARD |
| Bypass frequency conversion function | No passengers entering from the frequency of operation to switch to the Inverter run by the passengers into the run from the Inverter to switch to the frequency of operation | STANDARD |
| Traffic light indicator | In the upper and lower head of the escalator, the direction of travel of the passenger escalator is indicated | OPTIONAL |
| Additional Brake Relay Detection | Check if the additional brake relay is active | OPTIONAL |
| Additional Brake Switch Detection | Check if the additional brake is operating | OPTIONAL |
| Main drive chain disconnection detection | To prevent the main driving chain of the escalator break, causing a reversal. | OPTIONAL |
| Apron panel switch detection | Check whether the apron is loose or damaged | OPTIONAL |
| Handrail with broken switch detection | Check if the armrest strap is loose or broken | OPTIONAL |
| Status output function | Seven status points are provided for outputting 7 states of the escalator | OPTIONAL |
| Oil level detection | Check if the oil level is too low | OPTIONAL |
| Water level detection | Detection of escalator under the head room water level is too high | OPTIONAL |
| Wear Detection of Brake Shoe | Check whether the motor brake brake shoe is worn | OPTIONAL |
| Fan switch detection | Check whether the control cabinet fan is working properly | OPTIONAL |
| Fire FIR switch detection | Check if there is a fire in the escalator | OPTIONAL |
| Remote parking | Used to monitor the remote control room to stop the operation of the escalator | OPTIONAL |
| Lighting function | The illuminator lights when the escalator is running | OPTIONAL |
-Adopt a comprehensively improved 32-bit microprocessor has all kinds of functions,extraodinary reliability, and self-learning ability.
-The friction angle reaches 140-160 degrees,the handrail belt has a smooth travel curve and durability.
-New spatial curved aluminum alloy handrail entry,ensures the connection flatness and firmness of the external cover plate,easy to adjust and dismantle;
-Equiped with device for preventing floor plates from overturing,and high-precision two-side guide rail.
-Step pass the dynamic test 20 million times,which far exceeds the national requirement (5 million times).

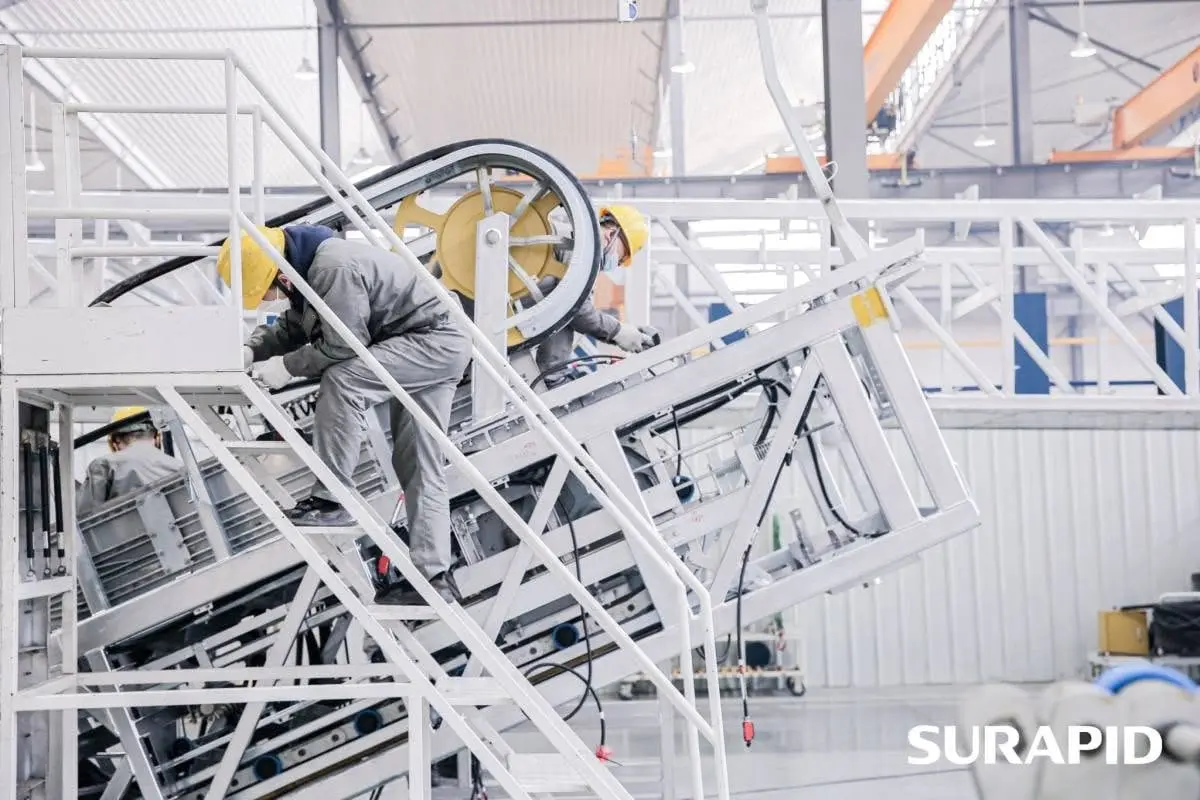

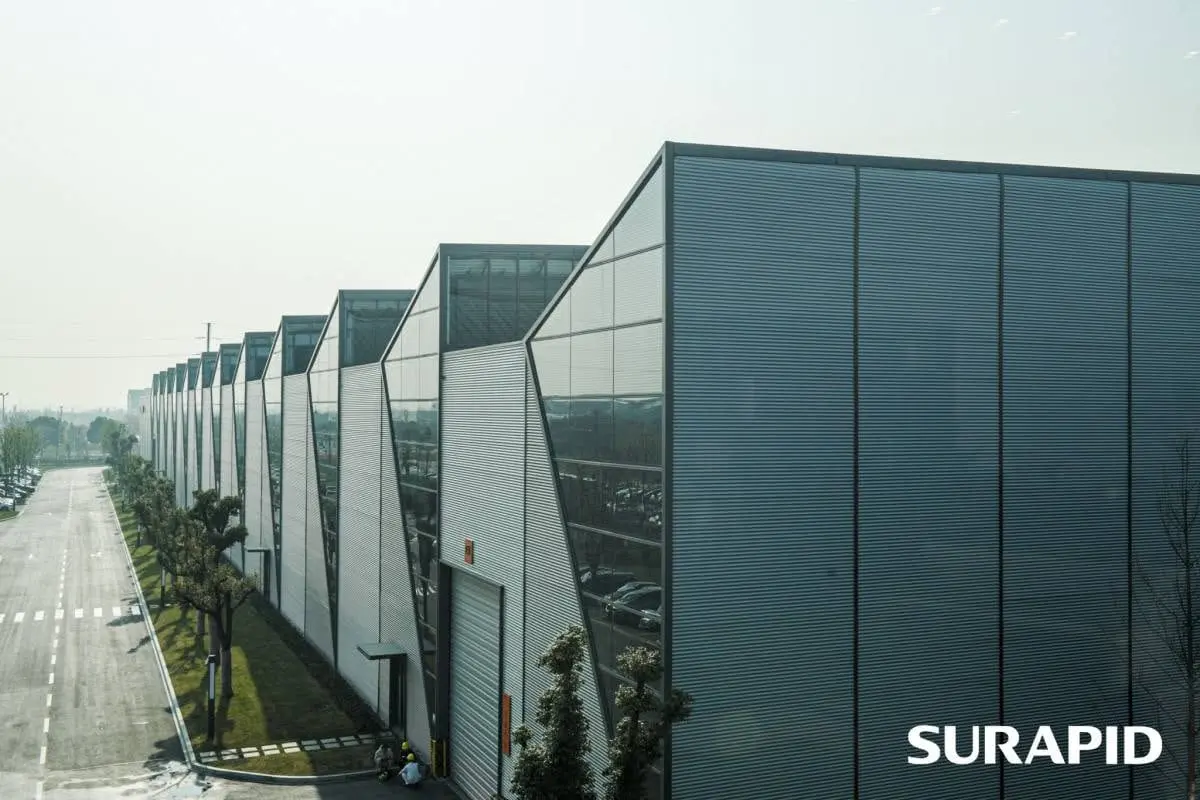

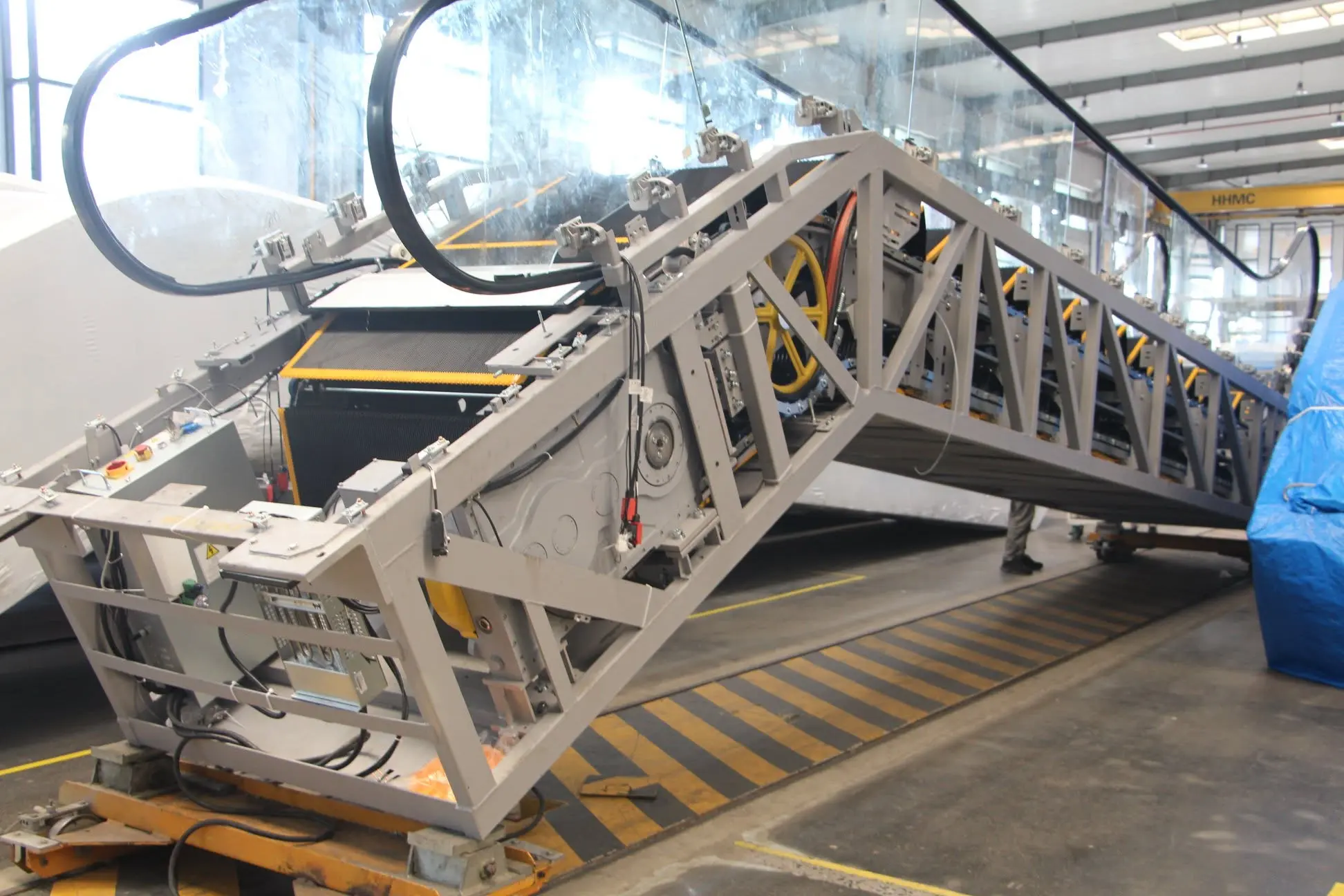

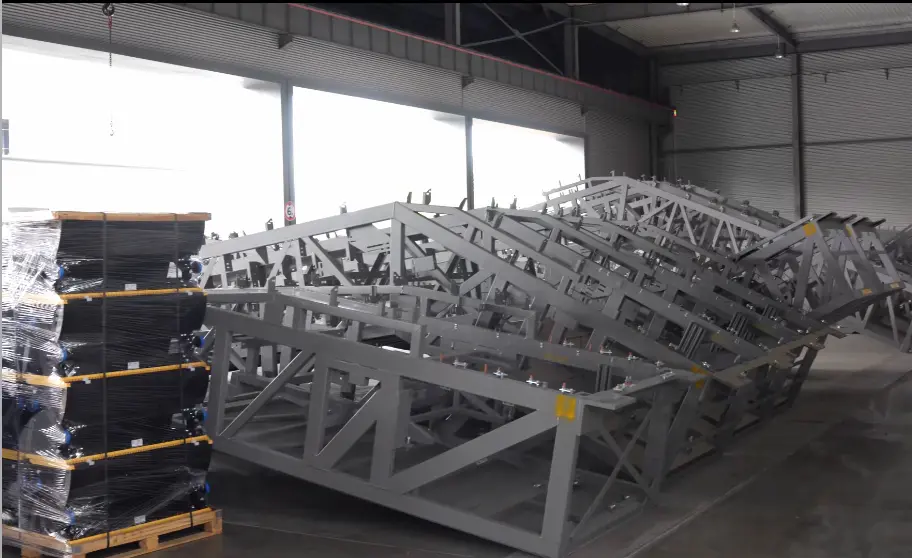

Escalator Factory Photos
